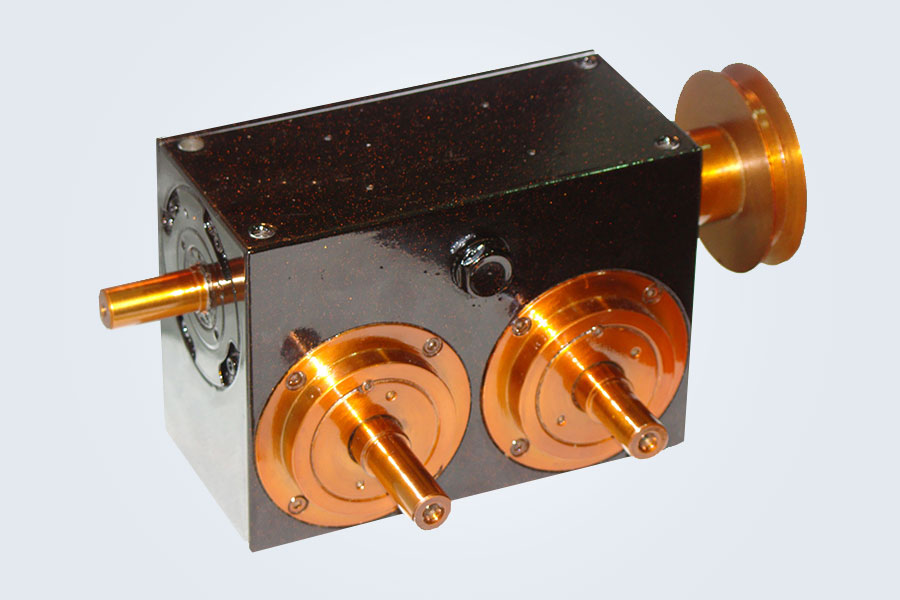

Parallel Shaft Indexer

The RP series is the Parallel Shaft Indexer and Oscillator series comprising of conjugate disc cams with turret having yoke mounted cam followers.

This series incorporates parallel input and output shafts and is most often used for low number of stops and conveyor applications.

Specifications

Centre distance –
50 to 200mm

Number of stops –
1, 2, 3, 4, 5, 6, & 8

Index angle –
90º to 330º

Accuracy +/– 30 Arc seconds
